PT15 through shaft rotary potentiometer

PT15 through shaft rotary potentiometer

  • Series:PT15

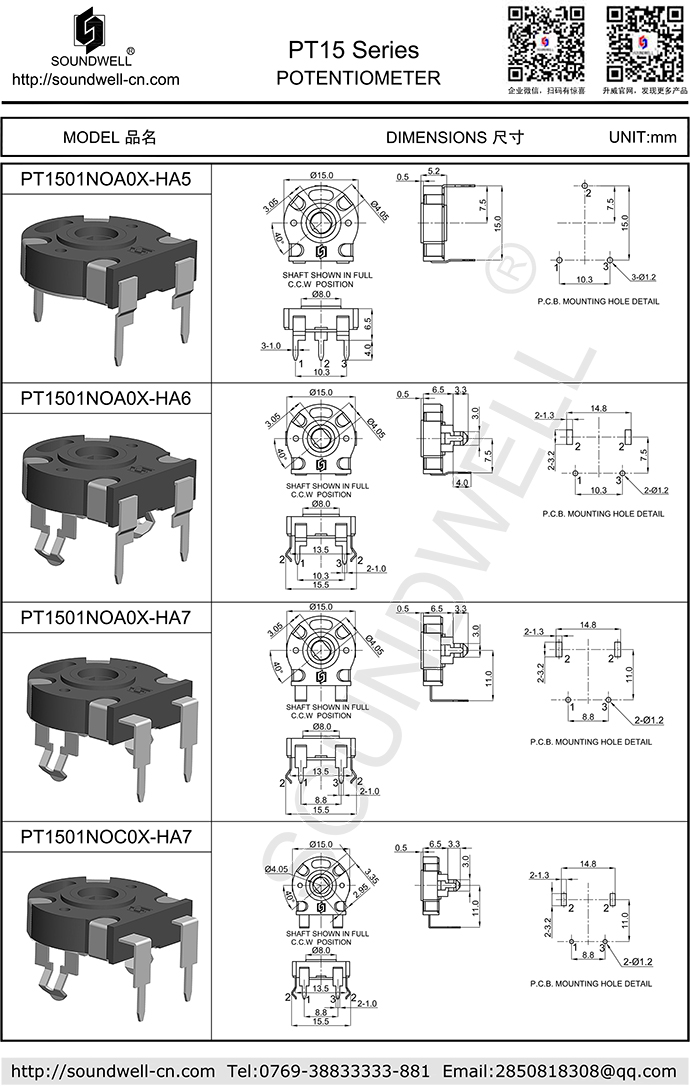

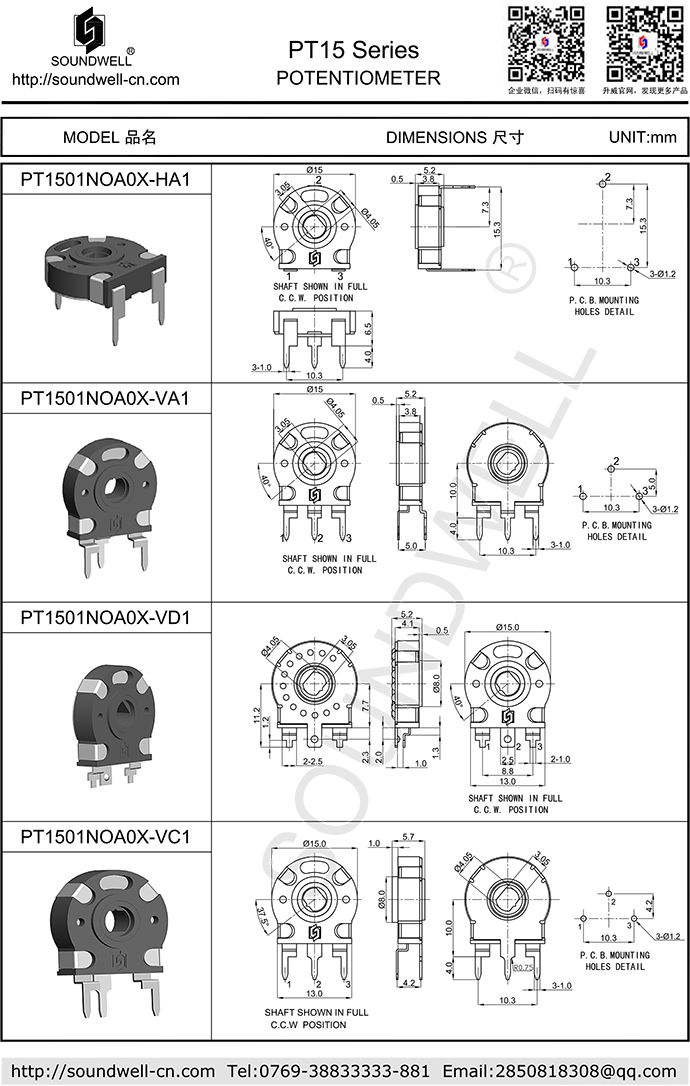

  • Format:See the following profile
  • Specifications

    Potentiometer model: PT15 series
    Name:

    PT15 Through Shaft Potentiometer

    Main Specifications: Dimensions: 15mm
    Rotational angle: 260°±10°
    Rotational torque: 10~100gf.cm
    Rated power: 0.25W
    Maximum operating voltage: AC 50V/DC 20V
    Operating temperature: -25℃ ~70℃;
    Rotational life: 10,000 cycles Min;
    Product Features:

    Small size with through shaft design;

    Reliable performance;

    Available in both top-adjust and side-adjust versions.

    Applications:

    Radios, electric tools, instruments and other related electronic

    devices. Mainly used for frequency regulation, voltage regulation,

    speed regulation, etc.

    PT15 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational Torque: 10~100gf.cm
    2. Total Rotation Angle: 260°±10°
    3. Shaft Stop Strength: ≥1Kgf.cm

    TWO、ELECTRICAL CHARACTERISTIC
    1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
    2. Resistance Taper: A/B/C
    3. Rated Power: 0.25W
    4. Max. Operating Voltage: 50V AC/20V DC
    5. Residual Resistance: ≤20Ω
    6. Insulation Resistance: 100M? 1 Minute at DC 200V
    7. Dielectric Voltage: 1 Minute at AC 200V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational Life: 10,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

    DownloadPT15-1.pdf

    DownloadPT15-2.pdf
