EC1604 Insulated Shaft Rotary Incremental Encoder

Series：

Format：See the following profile

Specifications　　

Encoder model：	EC1604 series
Name：	Insulated Shaft Rotary Incremental Encoder
Main Specifications:	Dimensions: 16mm； Rated power: DC 5V 10mA； Resolution: 12 pulses/360°; Number of detent: 12； Working temperature: -40℃~80℃； Operation life: 30,000 cycles Min；
Product Features：	Spring steel ball structure positioning mode; Good hand feel, clear and fast switching; Available in many different variants.
Applications：	Washing machines and other household appliances;

EC1604 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Rotational torque: 10-350gf.cm
2. Number of detent: 12
3. Shaft wobble: 0.7 x L/30mm p-p Max (L: Mountinf length)
4. Shaft play: 4° Max

TWO、ELECTRICAL CHARACTERISTIC

1. Resolution: 12 pulses/360°
2. Phase difference: ≥3.5ms
3. Power rating: DC 5V
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V

THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

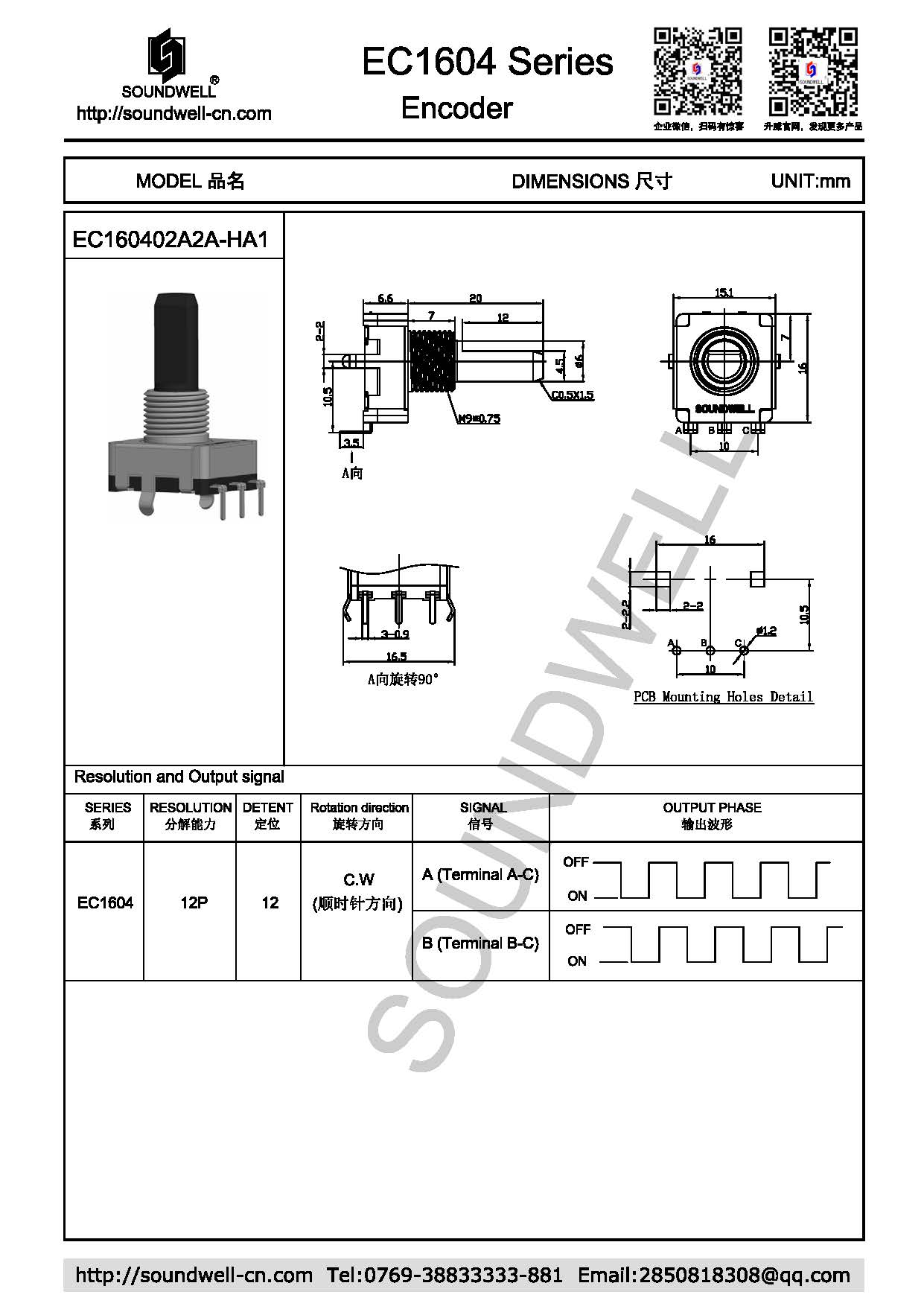

/uploads/images/EC1604-1.jpg
